Impianti aerei manuali per impregnatura

MODERN SYSTEM FOR IMPREGNATING AND PAINTING WINDOW FRAMES


CE


  • carosello
  • Camera_alta
  • flow
  • banco

IMPIANTO OPTIMAL RECOMMENDED SYSTEM


The evolution of production processes in order to achieve the necessary competitiveness,
companies have to acquire the latest technology and advanced to face the markets with
sufficient confidence. For these reasons, our technicians and our engineers are always looking for innovative solutions that enable our customers to compete to win. On this occasion we are pleased to introduce a system of impregnation of windows with high productivity, simple, practical, comprehensive and no doubt highly competitive.


Spirit



TANKS FOR THE FLOW-COATING AND PAINTING
IMPREGNATION


The Tanks Flow-coating steel with Mod INNOVATIONE INOX double diaphragm pump kit complete with suction filter, hoses, gun and shower, are totally innovative that allow for high productivity. Owing to their suggestions and advice of experts and professionals made steel, which does not alter the impregnating products. The side and rear, the shoulder angle equipped with a rack to support the artifact to his feet, allows complete impregnation on the front and against the face, and turn without twisting the frame. A special tool allows you to lift the piece for hanging on to the spokes of the cart.The tank can be downloaded completely, wash and prepare for the next impregnation.
Pannello


DATI TECNICI
Lunghezza
mm. 3.000
Altezza spalle
mm. 1.700
Altezza della visione anteriore
mm. 300
Larghezza alla base
mm. 1.150
Pompa portata nominale
Lt/MIN 30

Flow



SELF-CLEANING SANDING BENCH MOD.
MT. 2x1 E 2.5


The self-cleaning counters were designed and made to suck up fine dust from sanding.The strengths that characterize these rigs are essentially the ability to suck the dust and replace the air filter still in the room. They have a system of anti-clogging of the filter cloth by washing with jets of air. The dust released is collected in drawers. The benches are made of galvanized sheet, shaped top with hood and rear shoulder that can be reversed. The vacuum is of the squirrel cage, powerful and quiet.

DIMENSIONI E DATI
GHIBLI 2x1
GHIBLI 2,5x1
Lunghezza mm. 2.000
mm. 2.500
Larghezza mm. 1.000
mm. 1.000
Altezza del banco mm. 900
mm. 900
Potenza aspiratore kw. 1,1
kw. 1,1
Peso kg. 200
kg. 215


CAROUSEL RING


Anello
The carousel is new construction, built with galvanized profiles combined with bended curves that allow the flow of trucks inside the ring. The structure is self-supporting and requires no other reinforcing elements. The carousel can be anchored to the ceiling or supported by trusses resting on brackets or columns, or anchored to structures s flag.The buyer can choose the most suitable to your needs, depending on available space, number of carriages and anchors. Refer to diagrams and tables.


CARTS 4 SPOKE WITH HOOKS – STANDAR


Our experience has suggested to create new trolleys are easy to dismantle, move and clean by removing deposits of paint. They are made almost entirely to the laser. The sliding bearings are mounted on special racks that allow operation on the center of gravity and slide easily along the track. The auction with the lower hooks "U" covers the upper rod and through holes in the rods and screws and wing nuts, you can place the races at the desired height. The hooks are rotatable through 360 °, 45 ° 45 °, thanks to a star with spring ball.
Gancio


CARTS WITH HOOKS 4 SPOKE – SPECIAL


Special

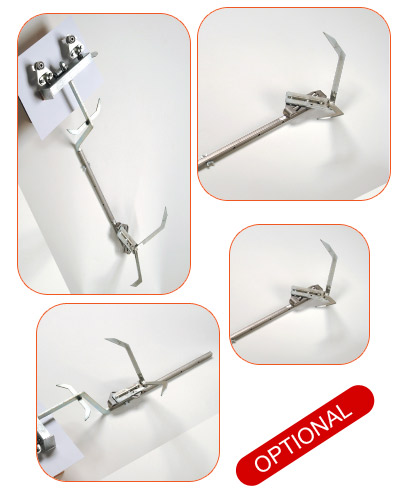

This hook with two races such as "BIG PROJECT" is a new design and features some very
popular and benefits listed below:

1) IS POSITIONED AT 0 °, 15 °, 22.5 ° 45 °

2) CAN BE EASILY REMOVED FOR CHANGING TILT AND CLEANING

3) THE AUCTION AD "U" IN HEIGHT WITH HOOK BELOW

4) THE AUCTION AD "U" IN HEIGHT WITH HOOKS UP

5) THE AUCTION AD "U" WILL COME OFF EASILY FOR ADJUSTMENTS AND CLEANING


DOUBLE RING


The double ring allows you to paint and soak time. It is great that passes through the small or viceversa trade pneumatically.
Doppio_anello


SPACE SAVER

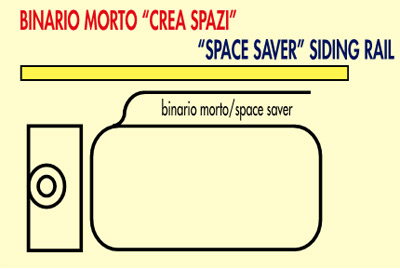

The dead end "creates space" has been designed to accept all or part of the truck, freeing the entire area below the ring with clear advantages in the recovery of space. The ring fitted with siding, is equipped with pneumatically driven by an exchange.
Binariomorto


Sostegni

Disegno


MODELLI - DATI -DIMENSIONI - SERIE SPIRIT
MODELLI
dimensioni e capienza dei caroselli
CAPIENZA CARRELLI LUNGH. IN METRI LARG. IN METRI ALT. IN METRI INGOMBRO LUNGHEZZA CABINA COMPRESSA NUMERO CAPRIATE SOLO SU MENSOLE SOLO SU COLONNE MISTO MENSOLE E COLONNE ANELLO APPESO A BANDIERE PORTATA KG.
SPIRIT 4x3/18
N° 18
MT. 4
MT. 3
MT.3,3
MT. 7,5
N° 2
N° 4
N° 4
N° 2+2
N° 2
KG. 500
SPIRIT 5x3/24
N° 24
MT. 5
MT. 3
MT.3,3
MT. 8,5
N° 2
N° 4
N° 4
N° 2+2
N° 2
KG. 600
SPIRIT 6x3/30
N° 30
MT. 6
MT. 3
MT.3,3
MT. 9,5
N° 2
N° 4
N° 4
N° 2+2
N° 2
KG. 600
SPIRIT 7x3/35
N° 35
MT. 7
MT. 3
MT.3,3
MT. 10,5
N° 2
N° 4
N° 4
N° 2+2
N° 2
KG. 650
SPIRIT 8x3/40
N° 40
MT. 8
MT.2,5
min. MT.3
MT. 11,5
N° 2
N° 4
N° 4
N° 2+2
N° 2
KG. 750
SPIRIT 10x3/50
N° 50
MT. 10
min. MT.2,5
min. MT.3
MT. 13,5
N° 3
N° 6
N° 6
N° 3+3
N° 3
KG. 1200
SPIRIT 12x3/60
N° 60
MT. 12
min. MT.2,5
min. MT.3
MT. 15,5
N° 3
N° 6
N° 6
N° 3+3
N° 3
KG. 1200
SPIRIT 14x3/75
N° 75
MT. 14
min. MT.2,5
min. MT.3
MT. 17,5
N° 3
N° 6
N° 6
N° 3+3
N° 3
KG. 1500
SPIRIT 16x3/90
N° 90
MT. 16
min. MT.2,5
min. MT.3
MT. 19,5
N° 4
N° 8
N° 8
N° 4+4
N° 4
KG. 1800
